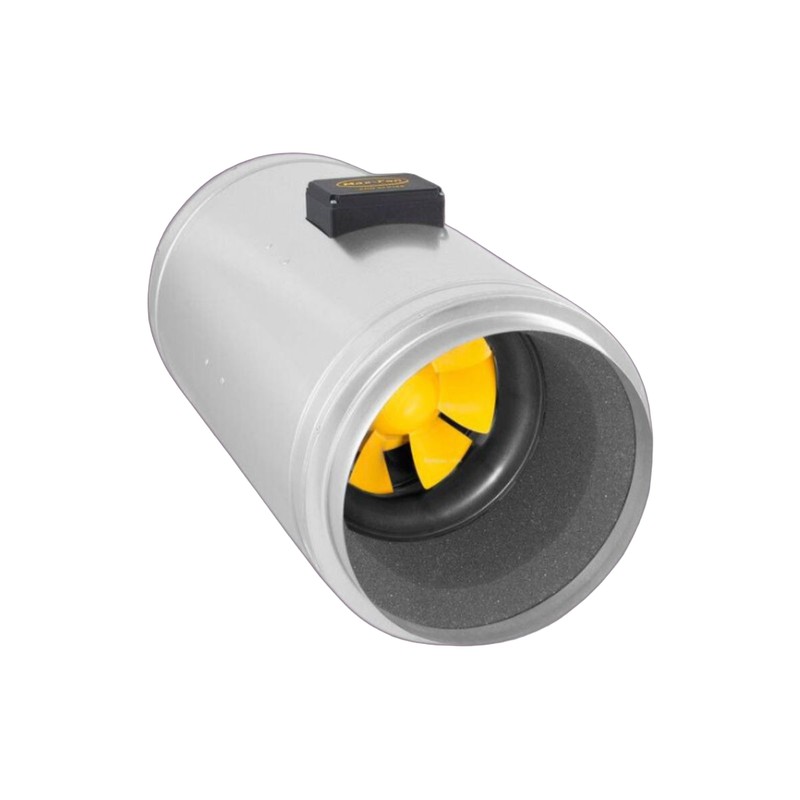

Q-Max EC Soundproof Extractor - Silent and Efficient Ventilation

Write a review

€629.51

Tax included

Quick and easy installation
Reduced energy consumption
Robust and durable materials
Constant and optimized air flow
Significant reduction in noise pollution

Diam/Débit : 150mm / 716m3/h

Quantity

Add to wishlist

Out-of-Stock

Guarantee safe & secure checkout

Presentation of Q-Max EC Extractors

The Q-Max EC series soundproof extractors represent the pinnacle of ventilation technology for growers. Designed with an integrated silencer, these extractors guarantee ultra-quiet operation while providing exceptional aerodynamic performance and reduced energy consumption.

Technical characteristics

Q-Max EC 150 extractor (716 m³/h) CAN-FAN

Maximum flow : 716 m³/h
Inlet diameter : 150 mm
maximum rpm : 3632
Consumption : 62 W
Maximum sound level : 68 dB

Q-Max EC 200 extractor (1203 m³/h) CAN-FAN

Maximum flow : 1203 m³/h
Inlet diameter : 200 mm
maximum rpm : 2901
Consumption : 117 W
Maximum sound level : 73 dB

Q-Max EC 250 extractor (2000 m³/h) CAN-FAN

Maximum flow : 2000 m³/h
Inlet diameter : 250 mm
maximum rpm : 3815
Consumption : 250 W
Maximum sound level : 79 dB

Q-Max EC 315 extractor (2850 m³/h) CAN-FAN

Maximum flow : 2850 m³/h
Inlet diameter : 315 mm
maximum rpm : 2543
Consumption : 284 W
Maximum sound level : 81 dB

Q-Max EC 355 extractor (3247 m³/h) CAN-FAN

Maximum flow : 3247 m³/h
Inlet diameter : 355 mm
maximum rpm : 2027
Consumption : 257 W
Maximum sound level : 75 dB

Q-Max EC 355 extractor (4800 m³/h) CAN-FAN

Maximum flow : 4800 m³/h
Inlet diameter : 355 mm
maximum rpm : 2970
Consumption : 719 W
Maximum sound level : 66 dB

Advantages of Q-Max EC Extractors

Absolute silence : Thanks to the integrated silencer, enjoy discreet ventilation.
Energy efficiency : EC motors consume less energy while providing high performance.
Optimized airflow : The rotor and stator design ensures continuous airflow without turbulence.
Automatic control : Compatible with the Can Fan EC LCD controller, automatically regulates temperature and speed.
Robustness and durability : Durable, easy-to-maintain metal housing.

EC functionality: What does it mean?

EC (Electronic Commutation) extractors use DC motors with electronic commutation, offering several advantages over traditional AC motors:

Increased energy efficiency : EC motors consume less energy.
Precise control : Finer adjustment of fan speed.
Durability : Less mechanical wear thanks to the absence of brushes.

Opinion from an Expert Grower

"Since I installed the Q-Max EC Extractor in my grow room, the silence has been impressive. The automatic temperature and speed regulation allows me to maintain perfect conditions without constant intervention." — Opinion from an expert grower

Questions answers

Q: How to install the Q-Max EC Extractor? A: Installation is simple. Attach the extractor to the duct and connect it to the Can Fan EC LCD controller for automatic regulation.

Q: What is an EC motor and why is it beneficial? A: An EC motor uses electronic switching to provide greater energy efficiency, precise control and greater durability.

Q: How is the built-in silencer beneficial? A: The acoustic foam-lined muffler absorbs noise, significantly reducing sound levels for a quieter environment.

Q: Is the Q-Max EC Extractor easy to maintain? A: Yes, thanks to its simple design and accessible components, maintenance is quick and easy.

Q: Can the speed of the extractor be adjusted manually? A: Yes, with the Can Fan EC LCD controller you can adjust the speed manually or let the system regulate automatically to the desired temperature.

Enjoy quiet and efficient ventilation with Q-Max EC extractors, perfect for maintaining an optimal growing environment.

Reference EXT-EC-Q-MAX-150-716M3H

Data sheet
