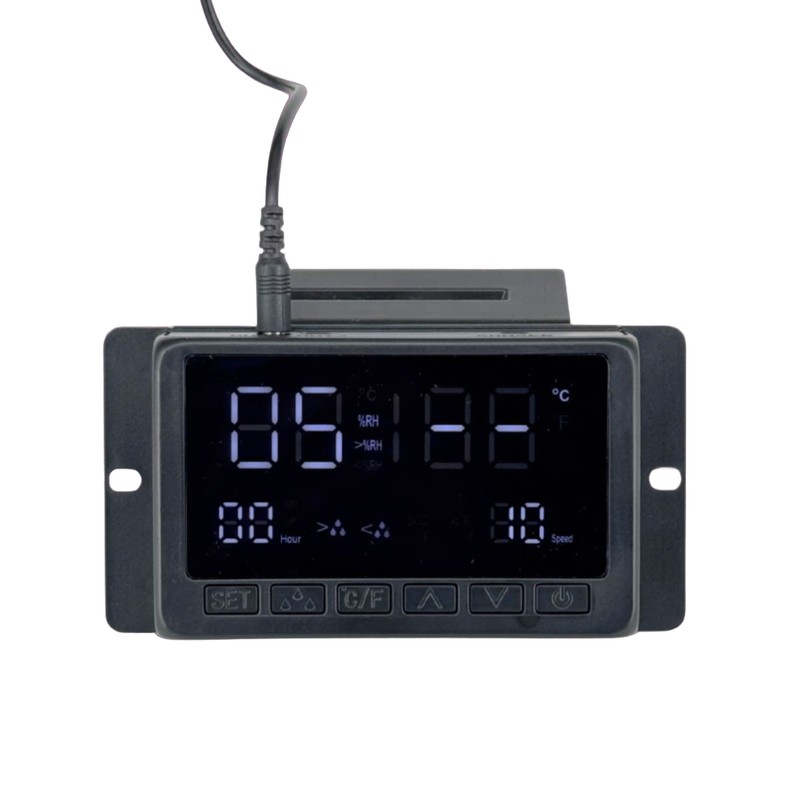

CYCLONE Climate Controller – Intelligent Control of EC Extraction
The CYCLONE climate controller is designed to automatically manage CYCLONE ventilation systems with EC motors and integrated activated carbon filters . It automates climate and air extraction management in enclosed growing spaces, eliminating the need for constant manual adjustments.
The essential complement to transform your CYCLONE extraction system into an intelligent climate control system.
Measured parameters: Temperature & Humidity
Temperature range: 32°F to 158°F
Humidity range: 1% to 100%
Control signal: 0–10 V (EC motor)
Probe cable length: 2.5 m (8.2 ft)
Warranty: 1 year
Complete automation of the extraction process
Connected directly to the EC extractor of the CYCLONE system, the controller automatically adjusts the ventilation speed according to the temperature and humidity values measured by its integrated probe.
The goal is simple: to maintain a stable and consistent environment, without having to manually adjust the extraction speed throughout the day.
Main functions of the CYCLONE controller
Precise control, designed for All-In-One systems with integrated filtration.
- Automatic control according to high and low temperature
- Automatic control according to high and low humidity
- Alarm mode activated when critical thresholds are exceeded
- Timer mode for programming operating cycles
- Precise speed control via 0–10 V signal
Optimized for systems with integrated carbon filter
In an All-In-One system like the CYCLONE, maintaining a constant and suitable airflow is essential to ensure effective odor filtration.
The controller prevents unnecessary over-ventilation, which allows:
- More stable filtration through activated carbon
- Limiting premature filter wear
- Improved consistency of the indoor climate
Simple to install and use
The controller is powered directly by the EC extractor and does not require a dedicated external power supply. Its screen provides a clear reading of measured values and operating parameters.
It is perfectly suited to:
- Grow tents and grow boxes
- Technical rooms
- Greenhouses and enclosed spaces
Full technical specifications
- Power supply: provided by the EC extractor
- Temperature range: 32°F to 158°F
- Humidity range: 1% to 100%
- Cable length: 8.2 ft (≈ 2.5 m)
- Screen size: 95 × 50 mm
- Product dimensions: 138 × 73 × 41 mm
- Packaging dimensions: 156 × 126 × 48 mm
- Gross weight: 0.28 kg
- Warranty: 1 year
Why combine it with the CYCLONE AllInOne Kit?
Without a controller, the CYCLONE extractor fan operates in manual mode. With this controller, you switch to automatic and intelligent climate control , adapting to actual variations in temperature and humidity.
GrowLED Tip:
The CYCLONE controller is highly recommended if you want to unlock the full potential of the CYCLONE AllInOne Kit. It allows for more stable, quieter extraction, better suited to the actual needs of your grow space.
Joseph – Director of GrowLED
